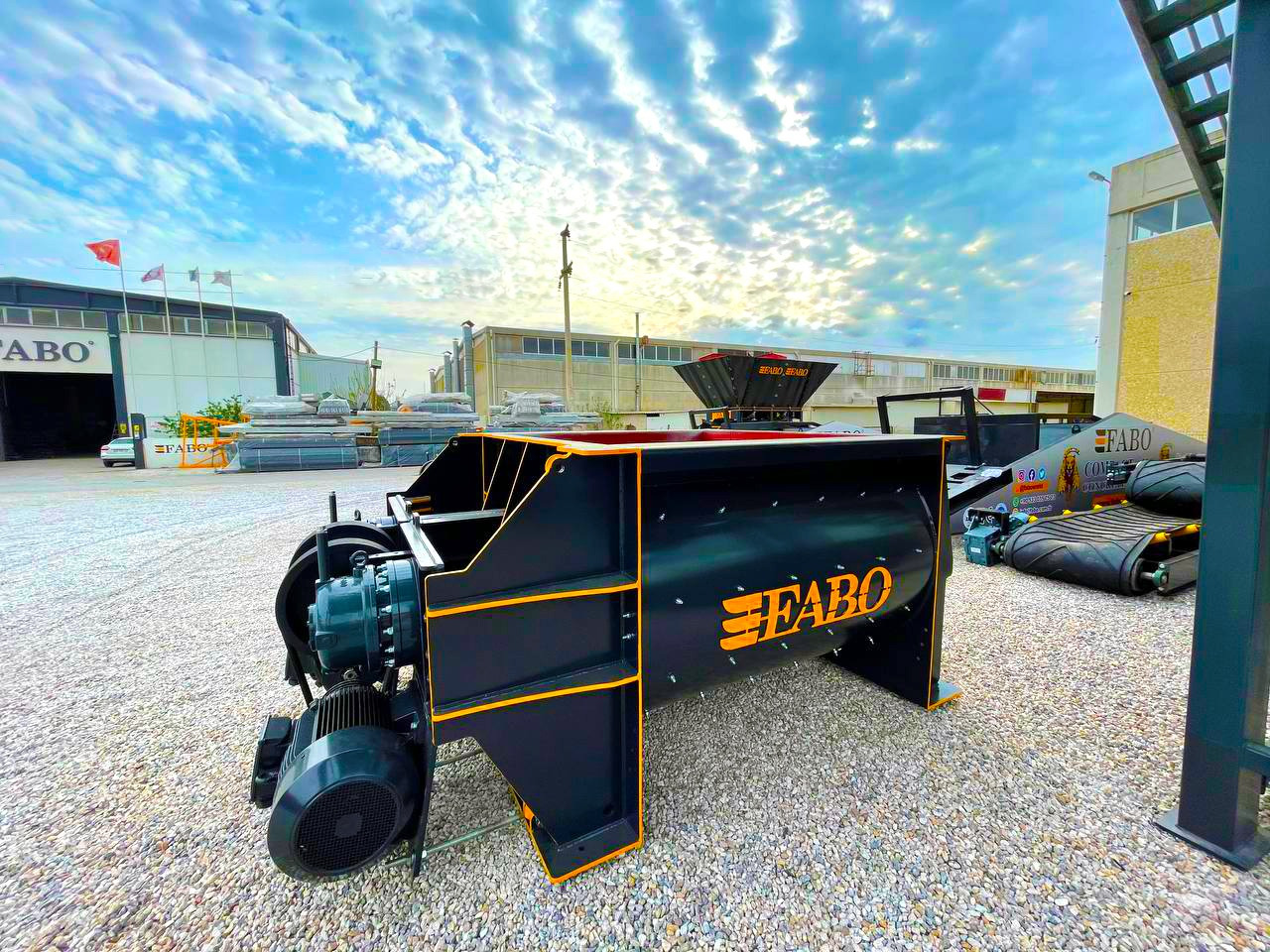

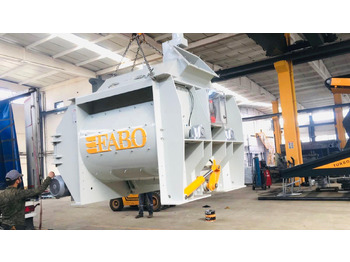

New Concrete mixer Constmach Double Shaft (Twinshaft) Concrete Mixer (Paddle Mixer)

Double shaft concrete mixer for sale you can call us 24/7.

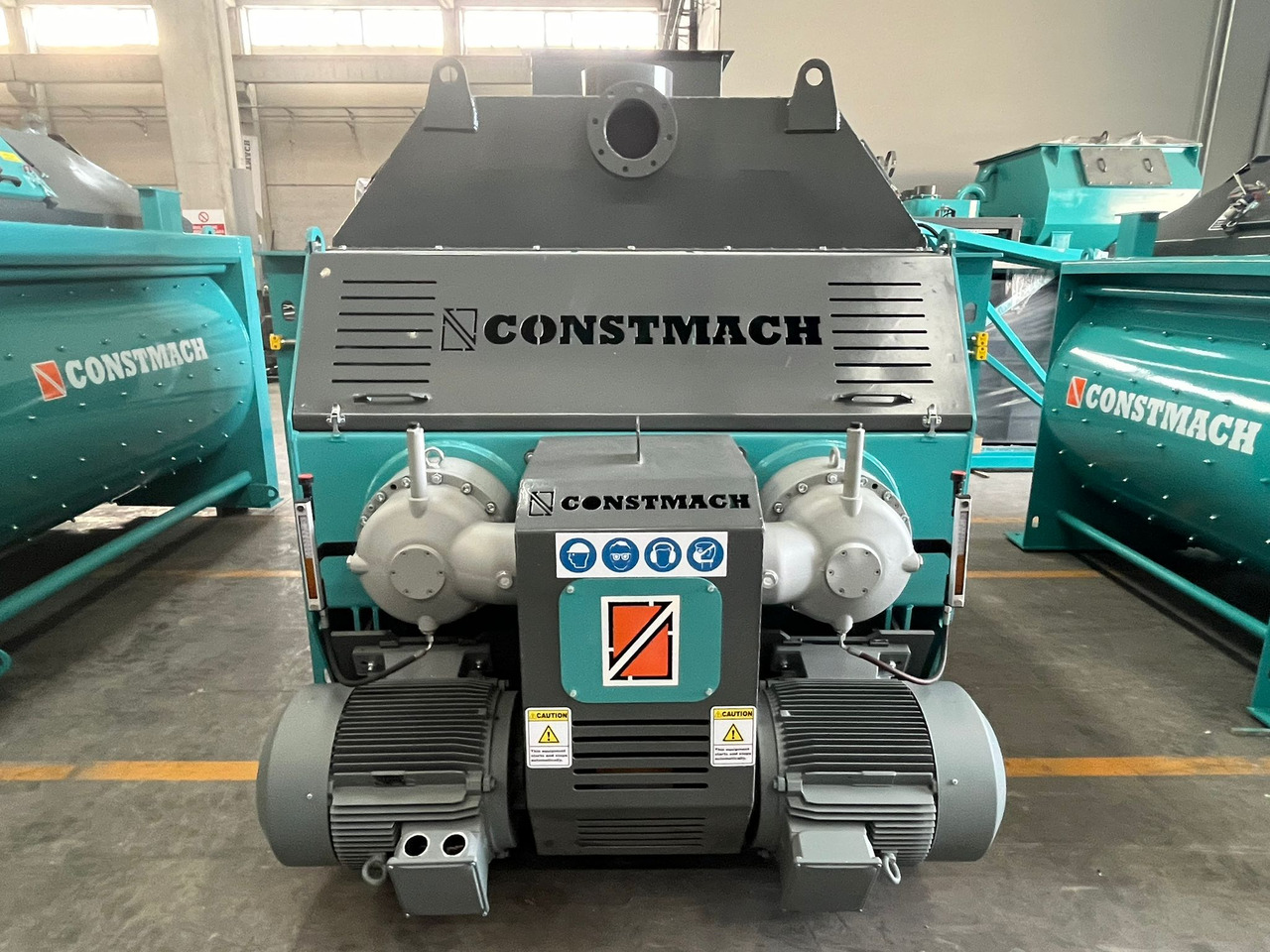

The CTS series double shaft concrete mixers offer excellent solutions for those who are looking for high performance and durability. This series contains a model suitable for every need with various loading volumes and engine power options. The models from CTS-1 to CTS-5 are equipped with specially designed specifications, each of which offers ideal options for different projects.

Each model of the CTS series is manufactured in such a way as to provide high efficiency and long service life. For example, the smallest model, the CTS-1, offers a loading volume of 1,500 liters and a fresh concrete capacity of 1,250 liters, while the CTS-5 model is perfect for larger projects with a loading volume of 7,500 liters and a fresh concrete capacity of 6,250 liters. The engine power ranges from 37 kW to 2 x 90 kW and it is aimed to provide the most appropriate performance for each model according to the needs.

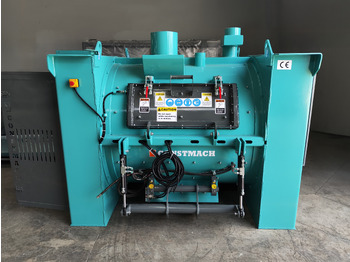

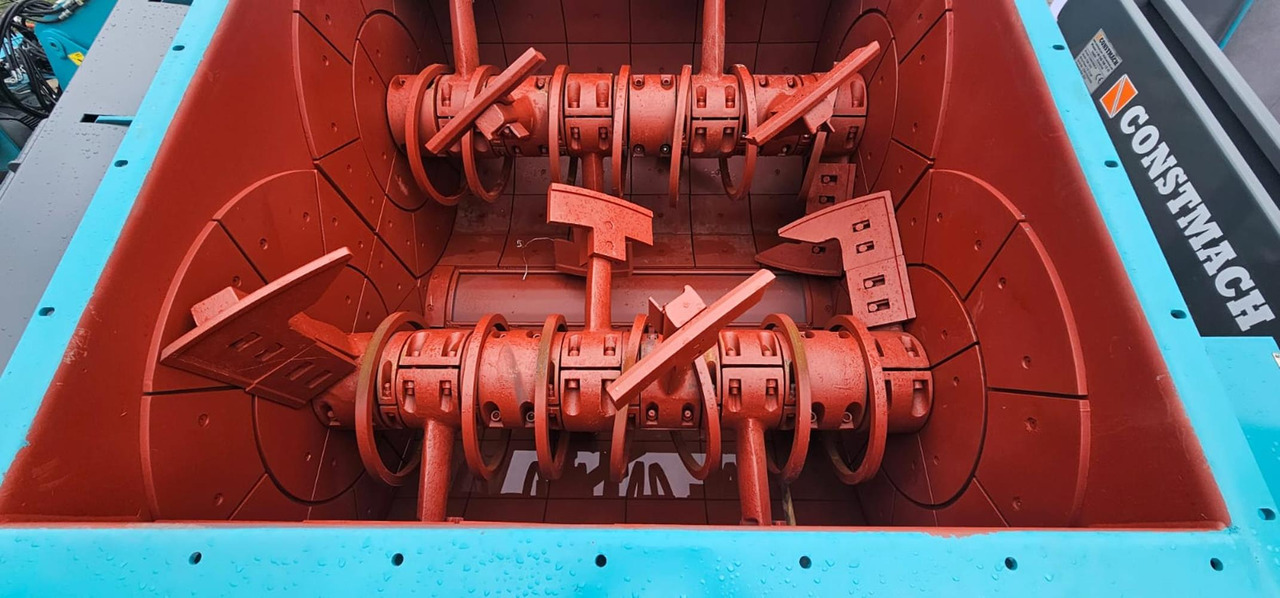

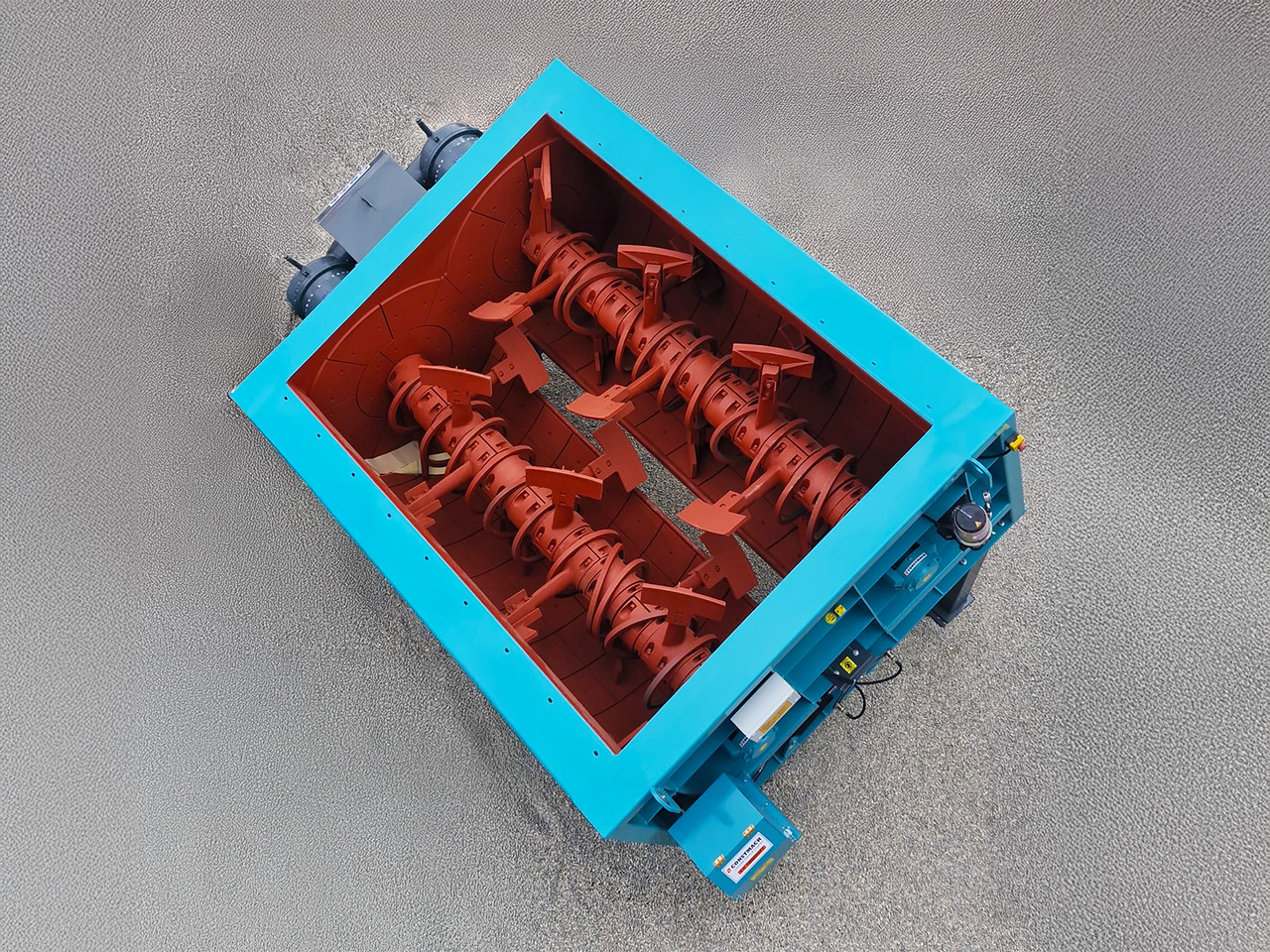

The 15 mm Hardox and Ni-Hard wear plates used in the CTS series mixers increase the durability of the side and main bodies. On the other hand, excellent performance is guaranteed even with long-term use by using 25 mm or 30 mm Ni-Hard wear plates on the mixing arms. In addition, the automatic lubrication system and hydraulic unloading covers facilitate the maintenance and unloading operations of users. Maintenance covers with safety sensors, on the other hand, maximize safety and ensure that operators work safely.

CTS series double shaft concrete mixers enable you to manage your works more efficiently and effectively with suitable model options for each project. Produced with high quality standards, these mixers help you to achieve excellent results every time by taking your business to the next level. With its reliability, durability and superior performance, the CTS series is the ideal choice to make your jobs faster and easier.

You can increase your productivity and complete your projects successfully with the CTS series mixers, which will meet all the needs required by your projects. The CTS series, which offers superior performance with each model, will simplify your work and maximize your productivity.

Technical Characteristics of CTS - 1 Model Double Shaft Concrete Mixer

Loading Volume: 1.500 lt

Fresh Concrete Volume: 1.250 lt

Compacted Concrete Volume: 1.000 lt

Engine Power: 37 kW

Side Body Wear Plates: 15 mm Hardox

Main Body Wear Plates: 15 mm Ni Hard

Mixing Handle Wear Plates: 25 mm Ni-Hard

Automatic Lubrication System: Available

Hydraulic Discharge Cover: Available

Maintenance Cover with Safety Sensor: Available

CTS - 2 Double Shaft Concrete Mixer Technical Specifications Model Technical Specifications

Loading Volume: 3,000 lt

Fresh Concrete Volume: 2.500 lt

Compacted Concrete Volume: 2.000 lt

Engine Power: 2 x 37 kW

Side Body Wear Plates: 15 mm Hardox

Main Body Wear Plates: 20 mm Ni Hard

Mixing Handle Wear Plates: 30 mm Ni-Hard

Automatic Lubrication System: Available

Hydraulic Discharge Cover: Available

Maintenance Cover with Safety Sensor: Available

CTS - 3 Model Double Shaft Concrete Mixer Technical Specifications Technical Characteristics

Loading Volume: 4.500 lt

Fresh Concrete Volume: 3.750 lt

Compacted Concrete Volume: 3.000 lt

Engine Power: 2 x 55 kW

Side Body Wear Plates: 20 mm Hardox

Main Body Wear Plates: 20 mm Ni Hard

Mixing Handle Wear Plates: 30 mm Ni-Hard

Automatic Lubrication System: Available

Hydraulic Discharge Cover: Available

Maintenance Cover with Safety Sensor: Available

Technical Characteristics of CTS - 4 Model Double Shaft Concrete Mixer

Loading Volume: 6,000 lt

Fresh Concrete Volume: 5.000 lt

Compacted Concrete Volume: 4.000 lt

Engine Power: 2 x 75 kW

Side Body Wear Plates: 25 mm Ni Hard

Main Body Wear Plates: 25 mm Ni Hard

Mixing Handle Wear Plates: 30 mm Ni-Hard

Automatic Lubrication System: Available

Hydraulic Discharge Cover: Available

Maintenance Cover with Safety Sensor: Available

Technical Characteristics of CTS - 5 Model Double Shaft Concrete Mixer

Loading Volume: 7.500 lt

Fresh Concrete Volume: 6.250 lt

Compacted Concrete Volume: 5.000 lt

Engine Power: 2 x 90 kW

Side Body Wear Plates: 25 mm Ni Hard

Main Body Wear Plates: 30 mm Ni Hard

Mixing Handle Wear Plates: 30 mm Ni-Hard

Automatic Lubrication System: Available

Hydraulic Discharge Cover: Available

Maintenance Cover with Safety Sensor: Available
