Lease a Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU

Published: 2mo 5d

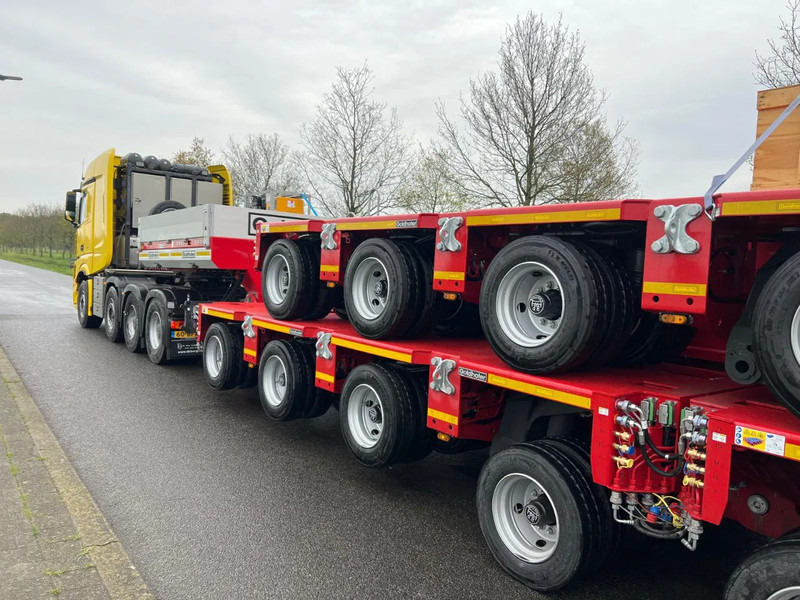

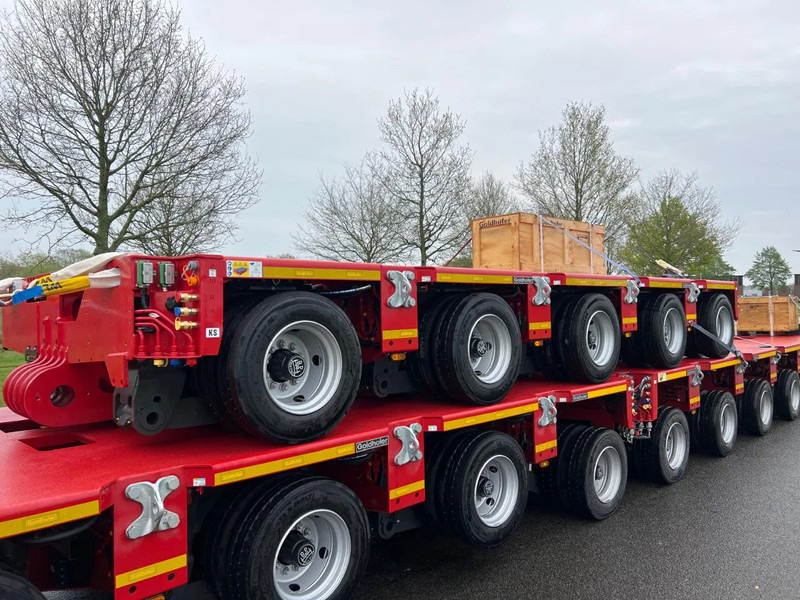

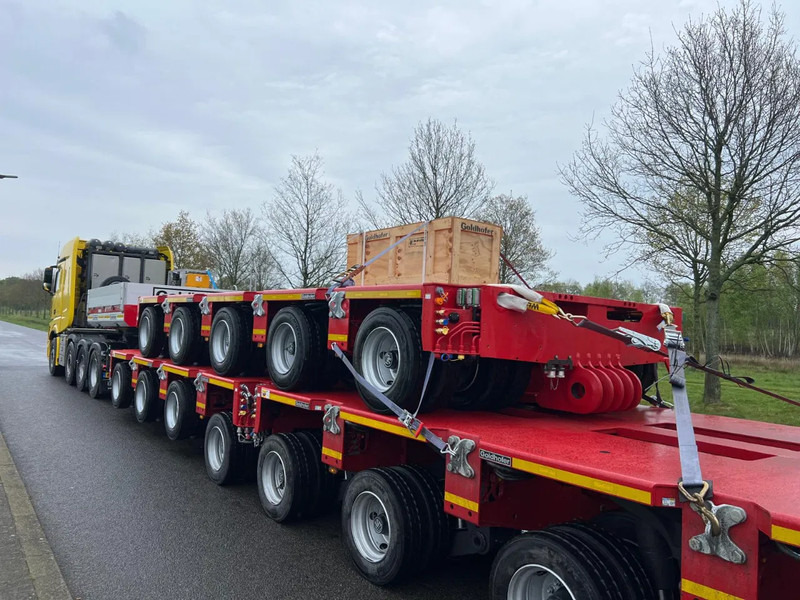

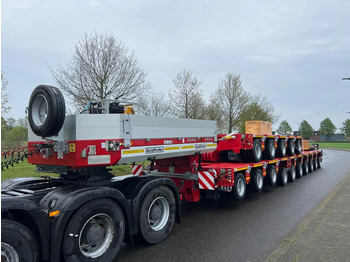

Lease a Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU: picture 2

Lease a Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU: picture 3

Lease a Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU: picture 4

Lease a Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU: picture 5

Lease a Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU: picture 6

Lease a Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU: picture 7

Lease a Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU: picture 8

Lease a Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU: picture 9

Lease a Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU: picture 10

Lease a Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU: picture 11

Lease a Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU: picture 12

Lease a Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU: picture 13

Lease a Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU: picture 14

Lease a Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU: picture 15

Lease a Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU Goldhofer THP SL 4, 5, 6 + Gooseneck + PPU: picture 16

Published: 2mo 5d

Brand

GOLDHOFER

Year of manufacture

2025

New

Condition

new

Payload

45000 kg

Color

red

Location

Netherlands, Pottenbakkerstraat 40 9403VX Assen The Netherlands

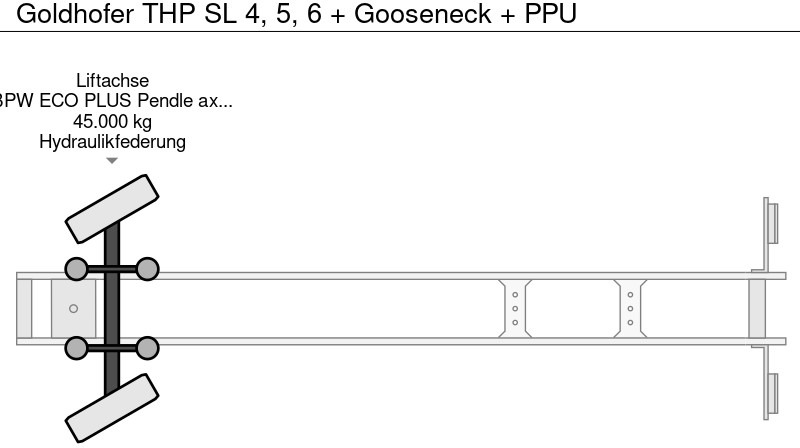

Chassis/suspension

suspension

hydraulic

front axle suspension

telescopic frame

number of axles

1-axle

axles make

BPW ECO PLUS Pendle axle: 1

lift axle

steering axles

wheel base

1500 mm

dual wheels

More information

Main Features

Manufacturer: Goldhofer

Gooseneck SH 35/ 2: WG0SH0003S2101140

Goldhofer THP SL 4: WG0THPS49S2101138

Goldhofer THP SL 5: WG0THPS54S2101136

Goldhofer THP SL 6: WG0THPS69S2101139

YOM: New / Unused

Universal Gooseneck SH 35/2

Loading platform: 3.700 mm x 2.440 mm

3.5 inch king pin

Hydrualic Lifting and lowering

Hyrdaulic supporting cylinders

Coupling height: 1.450 mm

Integrated lashing coupling

Lashing rings

Spare wheel + Spare wheel carrier

Hydraulic locking pin

Auto lube for gooseneck with pump, Beka-MAX

Hatz Diesel PPU

Hatz 1 Cylinder Diesel Engine (silent pack) @ 9.6 kW

240 Ltr hydraulic oil capacity powder coated tank

Capacity of 35 l/m and 250 bar max work pressure

3x different quick connector size for pressure connection

3x different quick connector size for tank connection

Electric RPM control

THP SL 4

Maximum axle load: 45.000 kg per axle

Total axle load: 4x 45.000 kg = 180.000 kg

GVW: 180.000 kg

Empty weight: 13.850 kg

Loading capacity: 166.150 kg

Total lenght: 6.000 mm

Loading floor width: 3.000 mm

Height: 1.175 mm. (+/- 300)

THP SL 5

Maximum axle load: 45.000 kg per axle

Total axle load: 5x 45.000 kg = 225.000 kg

GVW: 225.000 kg

Empty weight: 17.250 kg

Loading capacity: 207.750 kg

Total lenght: 7.500 mm

Loading floor width: 3.000 mm

Height: 1.175 mm. (+/- 300)

THP SL 6

Maximum axle load: 45.000 kg per axle

Total axle load: 6 x 45.000 kg = 270.000 kg

GVW: 270.000 kg

Empty weight:19.800 kg

Loading capacity: 250.200 kg

Total lenght: 9.000 mm

Loading floor width: 3.000 mm

Height: 1.175 mm. (+/- 300)

More information

Year of manufacture: 2025

Height of cargo floor: 117 cm

General condition: very good

Technical condition: very good

Visual appearance: very good

Price: On request

Please contact Mark Hilbolling (+31623926235, info@deborg.com), Mark Hilbolling (+31623926235) or J.A. Gejas (+31592346820) for more information
